Advanced pixel LED controller, which supports Art-Net/sACN (24 full universes in a group of 6 x 512) and DMX. Also working in stand-alone mode, which allows you to play pixel LED content from SD card. Advanced web configuration with quick status bar accessible through a web browser.
Device allows you to control up to 4096 Digital RGB LEDs or 3072 RGBW LEDs or 24 full Art-Net universes (in PRO 4096-pixel version).
SPI Matrix can be controlled by Art-NetsACN, DMX or can be operated by its stand-alone mode. The maximum of programmable RGB / RGBW LEDs is 4096 RGB / 3072 RGBW LEDs- total of 24 full Art-Net universes.
There are 4 independent SPI LED outputs. The maximum of RGB LEDs per Output is 1024 (6 Art-Net universes per one SPI Output). In case of RGBW LED it’s 768.
Required input power is 5-24V/ 0.3A (PCB only, without the LED strips / LED pixels) and maximal current is 10 A. Power connector and SPI out connector is standard 4 pin terminal with 5mm contact spacing e.g. SH04-5-GYLED.

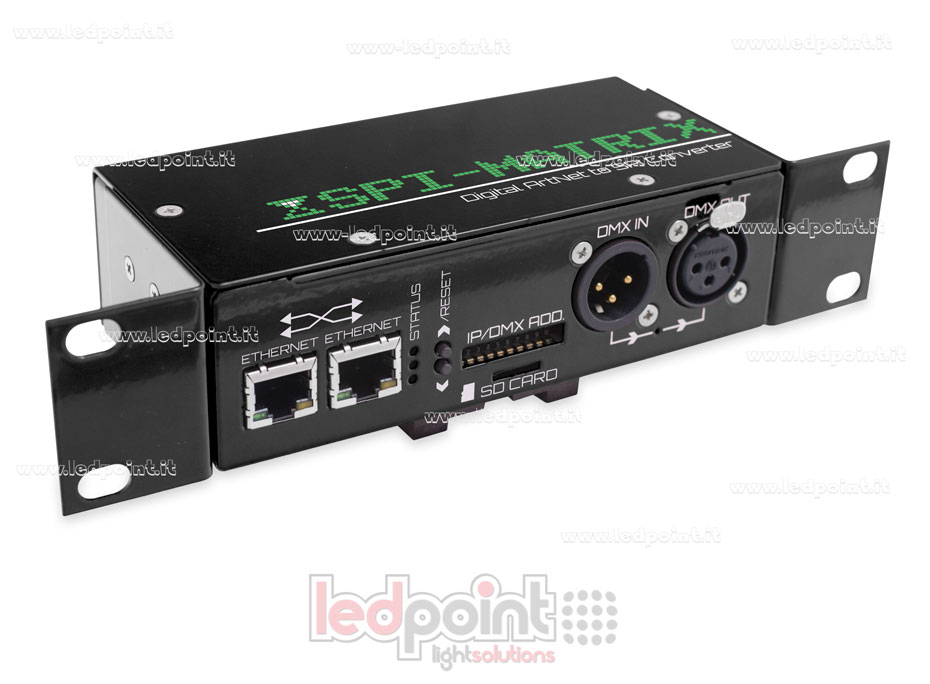

SPI Matrix supports most common connectors such as RJ-45, XLR in/out and SPI connectors for your LEDs. You can also find a slot for SD-Card, DIP switch and buttons for control in stand-alone mode. Optimal SD card is Micro SD Card (FAT32, up to 32 GB).
